Recycling the Past to Research for the Future: the Glasgow Geothermal Energy Research Field Site (GGERFS)

Contains public sector information licensed under the Open Government Licence v3.0.

On the 6th of February, a joint lecture of the Mining Institute of Scotland (MIS) and the Edinburgh Geological Society (EGS) was held at the Grant Institute of Geology , University of Edinburgh.
Dr Hugh Barron of the British Geological Survey (BGS, Scotland) gave us an overview of the Glasgow Geothermal Energy Research Field Site GGERFS, a research facility run by BGS Scotland and the Natural Environment Research Council (NERC), who also carry part of the funding.

Why geothermal energy?

Currently, only about 20% of Scotland’s total energy consumption is covered by renewable energies. It doesn’t sound impressive – and certainly we hope to do better in the future – still, compared with the rest of the UK, Scotland is remarkably successful in its implementation of renewable energies. And while our heat energy consumption is on average 3% higher than in the other parts of Britain (information accompanied by sympathetic laughter from the audience), compared with 2006 it has been reduced by impressive 30%.

New technologies may extend our exploitation of fossil fuels but they remain a finite resource. And considering the current rate of Global Warming it is even more important to find ways of generating energy which are low in CO₂ and / or CH₄ emissions. Geothermal energy clearly offers an interesting alternative.

Geothermal energy – for most people this conjures images of Iceland, where active volcanism provides subterranean heat, and hot springs are used in ingenious and spectacular ways. How could Scotland compare? For while our geology speaks of a rich volcanic past, by now our volcanoes are all extinct; eroded remnants of former explosive power.

However, geothermal energy is not just a question of how hot, but also of how much – relatively small differences in temperature over a large body of water still contain huge amounts of energy.
The tricky part is to extract this energy – and to make it widely available. As of now, it’s neither commercially nor technologically feasible to install a geothermal system for a single household property. For the most part, facilities are installed in large edifices or building complexes.

Projects of this kind do exist: the town of Heerlen (Netherlands) has been running a minewater scheme since 2008. In Scotland, facilities were installed in Shettleston (Glasgow), and in Lumphinans (Fife). These two projects had to be stopped in the meantime, due to problems with clogging (Shettleston) and a lack of qualified personnel for maintenance (Lumphinans).
This shows why it is so important to run a research program to find solutions for those technical problems, and to create the base for reliable and easy to run systems.

An image from the public exhibition in Dalmarnock, Glasgow (September 2015), which presented the plans for the geothermal energy research field site. Staff from the BGS explained the research and answered the visitors’ questions:

 The Past

Between the Highland Boundary Fault in the North and the Southern Uplands Fault in the South, we find five large coal mining areas:

• The Fife Coalfield
• The Central Coalfield
• The Lothians Coalfield (which crosses the Southern Uplands Fault in an eastwards direction)
• The Douglas Coalfield
• The Ayrshire Coalfield

Thousands of miners worked for centuries to extract the coal. What better way to honour their hard and dangerous work, than by re-using their constructions to improve our lives, protect our environment, and increase our knowledge?

Recycling

To use old coal mines offers a couple of advantages. The mines reach down to a depth of ~ 900 m, the shafts allow easy access to warm water with a maximum temperature of ca. 37° C. Records of these mines are still held by the BGS, and can offer information about promising future sites.

An interesting 3D view of the faulted and folded coal seams under the East End of Glasgow is provided by the Scottish Government:

From:
Potential for deep geothermal energy in Scotland: study volume 2

Research

The research is realised via the UK Geoenergy Observatories Project.
The project was commissioned by NERC, while BGS will carry out the research infrastructure and operate the facilities.
Two research sites have been created, with the aim to

• Independently monitor underground energy technologies
• Gather scientific evidence on new and established energy and storage technology to increase efficiency and sustainability
• Gain a world-class understanding that could support management and regulation
• Develop new, exportable technologies

The project’s timeline is set for 15 years, the duration of its last stage as a research facility will depend on the interest shown by the academic community.

There are many benefits to be gained from a dedicated research site.
First, as fracking has shown, we need to learn in advance what impact energy extraction might have on geology and environment. All the more, since effects cannot be directly observed, and intervention deep in the bedrock would be difficult or even impossible.
The people living close to these sites have a right to know what effects any project could have on their lives. As long as this information cannot be provided, the new technology isn’t likely to be accepted.

Secondly, this is an opportunity for gathering academics working in different fields. As astronomical missions are shared by many research teams, this could become a site where scientists can co-work in a professional environment, and share information across the borders of research interest or nationality.

Finally, besides technology, these days it’s mainly expertise that becomes a commodity. And more than money can be gained: to share knowledge is also an important way to connect people all over the world. Also, it’s in our own interest to help other countries to reduce their CO₂ emissions, as the effects of Global Warming caused in one country won’t stop at the borders of the next.

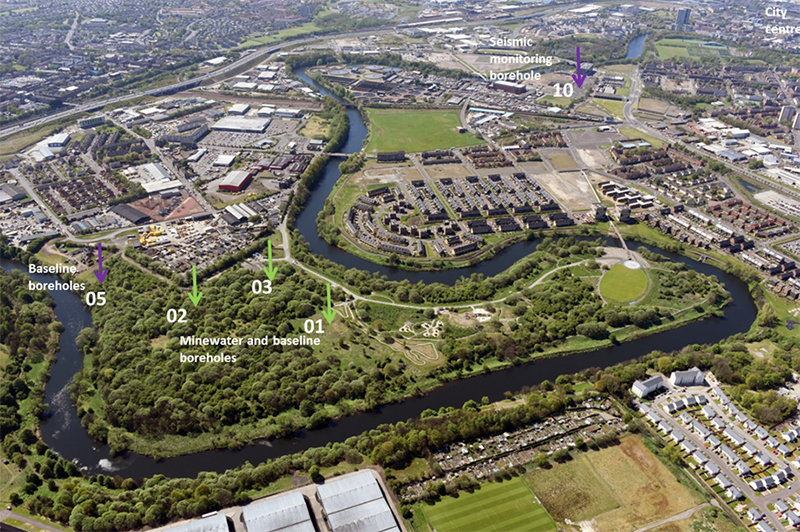

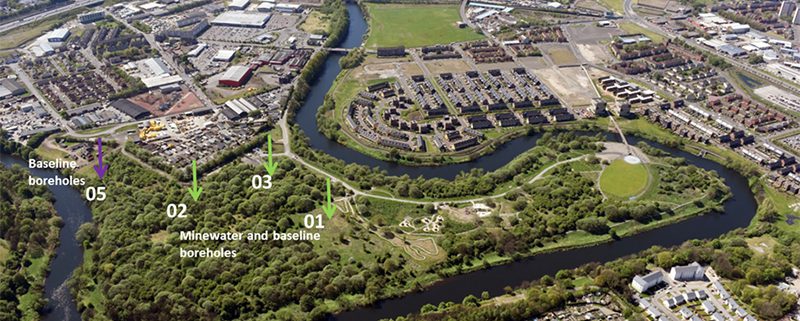

The site itself is situated in the Cuningar Woodland Park, a community park which successfully managed to encourage usage by the local community. Its quite charming welcome sign at the entrance, a quote from Dr Seuss

“Welcome…’If you never did you should.
These things are fun and fun is good.'”

could apply to geology, as well as to all other sciences.

Soil and bedrock at the site are a mixture of both natural and man-made formations.

Not all planned boreholes could be installed. The ‘surviving’ two include a weather station, gas probes, sensors for CO₂ and CH₄, and an active satellite based inSAR ground motion sensor. Seismometers are included as well ( in fact, they had been installed just the day before the talk). They are part of the UK seismic monitoring network.
The data acquisition in total includes environmental monitoring, soil chemistry, hydro-geochemistry, noise, and ecology.

The Future

The project is not meant to produce enough heat to cover all its costs, rather it is planned to finance itself through its use as a research site.
This research might include measuring the impact of the geothermal technology on the local environment, new technology, and even defining a base for legal and regulatory framework (as of now, there is no regulatory regime for geothermal technology in Scotland or the UK). In order to turn geothermal energy and heat into a profitable as well as beneficial industry, the extent of all related costs has to be established.

Research topics envisaged so far:

• Faulting and subsurface flow partitioning
• Chemical and heat tracer tests
• Flow rates and sustainability of heat yields
• Thermal breakthrough
• Subsurface to surface impacts
• Strategies to minimise clogging
• Geo-microbiology
• New technologies

An online data portal to make the results available for scientists and engineers world wide is planned.

The lecture offered an interesting view on a so far little-explored way of creating energy in Scotland. This project combines modern technology with the past – the constructions as well as the documentation held by the BGS – to add another piece to the mosaic of modern, decentralised energy production. The knowledge gained here can help to  facilitate the use of geothermal energy even on a modest scale. The smaller and simpler the technology, the wider the possible application world wide.

Thanks & Acknowledgement

Gratitude is owed to Dr Barron for holding this lecture. He gave a clear overview of the project, its background, goals, challenges and future. He also kindly answered many follow-up questions at the traditional after-talk-tea at the Cockburn Geological Museum.
